Wednesday, August 2, 2017

android - Get media volume level example

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/root_layout"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:padding="16dp"
    android:orientation="vertical"
    android:background="#d1dcce"
    >
    <TextView
        android:id="@+id/tv_stats"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:textStyle="bold"
        android:textSize="25sp"
        />
    <Button
        android:id="@+id/btn_get"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Get Media Volume Level"
        />
</LinearLayout>
MainActivity.java

package com.cfsuman.me.androidcodesnippets;

import android.app.Activity;
import android.content.Context;
import android.media.AudioManager;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;
import android.widget.LinearLayout;
import android.widget.TextView;


public class MainActivity extends AppCompatActivity {
    private Context mContext;
    private Activity mActivity;

    private LinearLayout mRootLayout;
    private Button mBtnGet;
    private TextView mTVStats;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        // Get the application context
        mContext = getApplicationContext();
        mActivity = MainActivity.this;

        // Get the widget reference from xml layout
        mRootLayout = findViewById(R.id.root_layout);
        mBtnGet = findViewById(R.id.btn_get);
        mTVStats = findViewById(R.id.tv_stats);

        // Click listener for the button
        mBtnGet.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                /*
                    AudioManager
                        AudioManager provides access to volume and ringer mode control.

                        Instances of this class must be obtained using
                        Context.getSystemService(Class) with the argument AudioManager.class or
                        Context.getSystemService(String) with the argument Context.AUDIO_SERVICE.
                */

                // Get the AudioManager instance
                AudioManager am = (AudioManager) getSystemService(AUDIO_SERVICE);

                /*
                    int getStreamVolume (int streamType)
                        Returns the current volume index for a particular stream.

                    Parameters
                        streamType int : The stream type whose volume index is returned.

                    Returns
                        int : The current volume index for the stream.
                */

                // Get the music current volume level
                int music_volume_level = am.getStreamVolume(AudioManager.STREAM_MUSIC);

                // Get the device music maximum volume level
                int max = am.getStreamMaxVolume(AudioManager.STREAM_MUSIC);

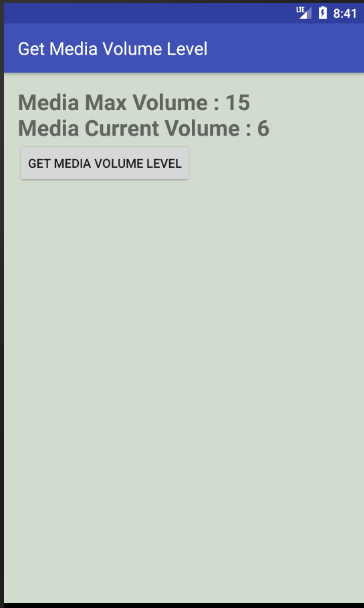

                // Display the media volume level stats on text view
                mTVStats.setText("Media Max Volume : " + max
                        + "\nMedia Current Volume : " + music_volume_level);
            }
        });
    }
}
