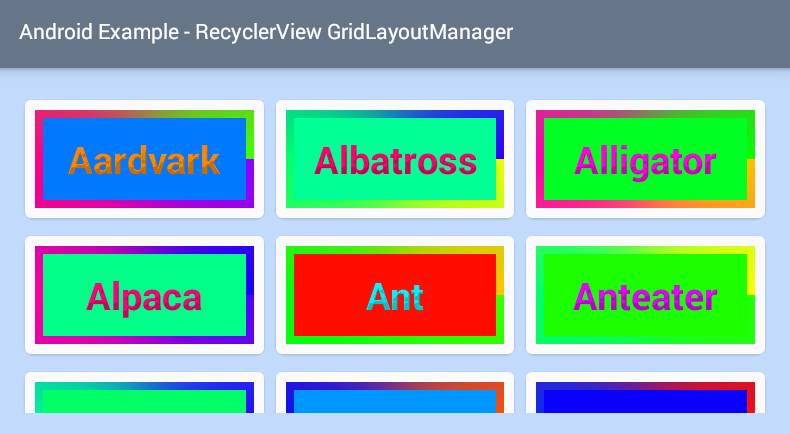

Android RecyclerView Grid Layout Example

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/rl"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:padding="16dp"
    tools:context=".MainActivity"
    android:background="#c2dbfd"
    >
    <android.support.v7.widget.RecyclerView
        android:id="@+id/recycler_view"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:scrollbars="vertical"
        >
    </android.support.v7.widget.RecyclerView>
</RelativeLayout>
custom_view.xml

<?xml version="1.0" encoding="utf-8"?>
<android.support.v7.widget.CardView
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:card_view="http://schemas.android.com/apk/res-auto"
    android:id="@+id/card_view"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    card_view:cardCornerRadius="4dp"
    card_view:cardMaxElevation="4dp"
    card_view:cardElevation="2dp"
    card_view:contentPadding="5dp"
    >
    <LinearLayout
        android:id="@+id/ll"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:padding="3dp"
        >
        <TextView
            android:id="@+id/tv"
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:textColor="#000"
            android:textSize="25dp"
            android:textStyle="bold"
            android:layout_margin="2dp"
            android:padding="10dp"
            android:layout_gravity="center"
            android:gravity="center"
            />
    </LinearLayout>
</android.support.v7.widget.CardView>
MainActivity.java

package com.cfsuman.me.androidcode;

import android.content.Context;
import android.graphics.Color;
import android.graphics.drawable.ColorDrawable;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.support.v7.widget.GridLayoutManager;
import android.support.v7.widget.RecyclerView;
import android.view.Window;
import android.widget.RelativeLayout;


public class MainActivity extends AppCompatActivity {
    private Context mContext;

    RelativeLayout mRelativeLayout;
    private RecyclerView mRecyclerView;

    private RecyclerView.Adapter mAdapter;
    private RecyclerView.LayoutManager mLayoutManager;


    @Override
    protected void onCreate(Bundle savedInstanceState) {
        // Request window feature action bar
        requestWindowFeature(Window.FEATURE_ACTION_BAR);
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        // Get the application context
        mContext = getApplicationContext();

        // Change the action bar color
        getSupportActionBar().setBackgroundDrawable(
                new ColorDrawable(Color.parseColor("#FF677589"))
        );

        // Get the widgets reference from XML layout
        mRelativeLayout = (RelativeLayout) findViewById(R.id.rl);
        mRecyclerView = (RecyclerView) findViewById(R.id.recycler_view);

        // Initialize a new String array
        String[] animals = {
                "Aardvark",
                "Albatross",
                "Alligator",
                "Alpaca",
                "Ant",
                "Anteater",
                "Antelope",
                "Ape",
                "Armadillo",
                "Donkey",
                "Baboon",
                "Badger",
                "Barracuda",
                "Bear",
                "Beaver",
                "Bee"
        };

        /*
            GridLayoutManager
                A RecyclerView.LayoutManager implementations that lays out items in a grid.
                By default, each item occupies 1 span. You can change it by providing a custom
                GridLayoutManager.SpanSizeLookup instance via setSpanSizeLookup(SpanSizeLookup).
        */
        /*
            public GridLayoutManager (Context context, int spanCount)
                Creates a vertical GridLayoutManager

            Parameters
                context : Current context, will be used to access resources.
                spanCount : The number of columns in the grid
        */
        // Define a layout for RecyclerView
        mLayoutManager = new GridLayoutManager(mContext,3);
        mRecyclerView.setLayoutManager(mLayoutManager);

        // Initialize a new instance of RecyclerView Adapter instance
        mAdapter = new AnimalsAdapter(mContext,animals);

        // Set the adapter for RecyclerView
        mRecyclerView.setAdapter(mAdapter);
   }
}
AnimalsAdapter.java

package com.cfsuman.me.androidcode;

import android.content.Context;
import android.graphics.Color;
import android.graphics.EmbossMaskFilter;
import android.graphics.drawable.GradientDrawable;
import android.support.v7.widget.RecyclerView;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.LinearLayout;
import android.widget.TextView;

import java.util.Random;


public class AnimalsAdapter extends RecyclerView.Adapter<AnimalsAdapter.ViewHolder>{
    private String[] mDataSet;
    private Context mContext;
    private Random mRandom = new Random();

    public AnimalsAdapter(Context context,String[] DataSet){
        mDataSet = DataSet;
        mContext = context;
    }

    public static class ViewHolder extends RecyclerView.ViewHolder{
        public TextView mTextView;
        public LinearLayout mLinearLayout;
        public ViewHolder(View v){
            super(v);
            mTextView = (TextView) v.findViewById(R.id.tv);
            mLinearLayout = (LinearLayout) v.findViewById(R.id.ll);
        }
    }

    @Override
    public AnimalsAdapter.ViewHolder onCreateViewHolder(ViewGroup parent, int viewType){
        // Create a new View
        View v = LayoutInflater.from(mContext).inflate(R.layout.custom_view,parent,false);
        ViewHolder vh = new ViewHolder(v);
        return vh;
    }

    @Override
    public void onBindViewHolder(ViewHolder holder, int position){
        holder.mTextView.setText(mDataSet[position]);
        // Generate a random color
        int color = getRandomHSVColor();

        // Set a random color for TextView background
        holder.mTextView.setBackgroundColor(getLighterColor(color));

        // Set a text color for TextView
        holder.mTextView.setTextColor(getReverseColor(color));

        // Set a gradient background for LinearLayout
        holder.mLinearLayout.setBackground(getGradientDrawable());

        // Emboss the TextView text
        applyEmbossMaskFilter(holder.mTextView);
    }

    @Override
    public int getItemCount(){
        return mDataSet.length;
    }

    // Custom method to apply emboss mask filter to TextView
    protected void applyEmbossMaskFilter(TextView tv){
        EmbossMaskFilter embossFilter = new EmbossMaskFilter(
                new float[]{1f, 5f, 1f}, // direction of the light source
                0.8f, // ambient light between 0 to 1
                8, // specular highlights
                7f // blur before applying lighting
        );
        tv.setLayerType(View.LAYER_TYPE_SOFTWARE,null);
        tv.getPaint().setMaskFilter(embossFilter);
    }

    // Custom method to generate random HSV color
    protected int getRandomHSVColor(){
        // Generate a random hue value between 0 to 360
        int hue = mRandom.nextInt(361);
        // We make the color depth full
        float saturation = 1.0f;
        // We make a full bright color
        float value = 1.0f;
        // We avoid color transparency
        int alpha = 255;
        // Finally, generate the color
        int color = Color.HSVToColor(alpha, new float[]{hue, saturation, value});
        // Return the color
        return color;
    }

    // Custom method to create a GradientDrawable object
    protected GradientDrawable getGradientDrawable(){
        GradientDrawable gradient = new GradientDrawable();
        gradient.setGradientType(GradientDrawable.SWEEP_GRADIENT);
        gradient.setColors(new int[]{getRandomHSVColor(), getRandomHSVColor(),getRandomHSVColor()});
        return gradient;
    }

    // Custom method to get a darker color
    protected int getDarkerColor(int color){
        float[] hsv = new float[3];
        Color.colorToHSV(color, hsv);
        hsv[2] = 0.8f *hsv[2];
        return Color.HSVToColor(hsv);
    }

    // Custom method to get a lighter color
    protected int getLighterColor(int color){
        float[] hsv = new float[3];
        Color.colorToHSV(color,hsv);
        hsv[2] = 0.2f + 0.8f * hsv[2];
        return Color.HSVToColor(hsv);
    }

    // Custom method to get reverse color
    protected int getReverseColor(int color){
        float[] hsv = new float[3];
        Color.RGBToHSV(
                Color.red(color), // Red value
                Color.green(color), // Green value
                Color.blue(color), // Blue value
                hsv
        );
        hsv[0] = (hsv[0] + 180) % 360;
        return Color.HSVToColor(hsv);
    }
}
build.gradle [dependencies]

compile 'com.android.support:recyclerview-v7:23.0.1'
compile 'com.android.support:cardview-v7:23.0.1'
