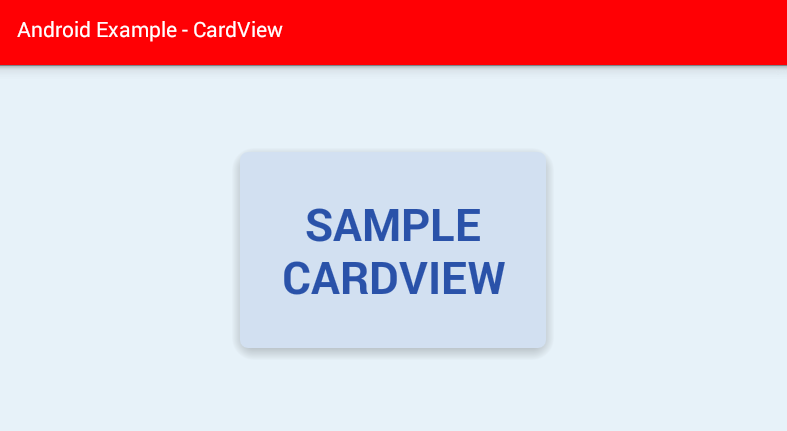

Android CardView Example

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:padding="16dp"
    tools:context=".MainActivity"
    android:background="#e7f2f9"
    >
    <!--
        CardView
            A FrameLayout with a rounded corner background and shadow.
            CardView uses elevation property on L for shadows and falls back to a custom shadow
            implementation on older platforms.
    -->
    <!--
        android.support.v7.cardview:cardElevation
            Elevation for CardView.
            Must be a dimension value, which is a floating point number appended with a unit such
            as "14.5sp". Available units are: px (pixels), dp (density-independent pixels), sp
            (scaled pixels based on preferred font size), in (inches), mm (millimeters).

            This may also be a reference to a resource (in the form "@[package:]type:name") or
            theme attribute (in the form "?[package:][type:]name") containing a value of this type.

            This is a private symbol.
    -->
    <!--
        android.support.v7.cardview:contentPadding
            Inner padding between the edges of the Card and children of the CardView.
    -->
    <!--
        android.support.v7.cardview:cardBackgroundColor
            Background color for CardView.
            Must be a color value, in the form of "#rgb", "#argb", "#rrggbb", or "#aarrggbb".
            This may also be a reference to a resource (in the form "@[package:]type:name") or
            theme attribute (in the form "?[package:][type:]name") containing a value of this type.
            This is a private symbol.
    -->
    <!--
        android.support.v7.cardview:cardCornerRadius
            Corner radius for CardView.
            Must be a dimension value.
    -->
    <android.support.v7.widget.CardView
        xmlns:card_view="http://schemas.android.com/apk/res-auto"
        android:id="@+id/card_view"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_centerInParent="true"
        card_view:cardCornerRadius="5dp"
        card_view:contentPadding="25dp"
        card_view:cardBackgroundColor="#d2e0f1"
        card_view:cardElevation="5dp"
        >
        <TextView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="SAMPLE\nCARDVIEW"
            android:textSize="30sp"
            android:textStyle="bold"
            android:layout_gravity="center"
            android:gravity="center"
            android:textColor="#2a52a9"
            />
    </android.support.v7.widget.CardView>
</RelativeLayout>
build.gradle [dependencies]

compile 'com.android.support:cardview-v7:23.0.1'
