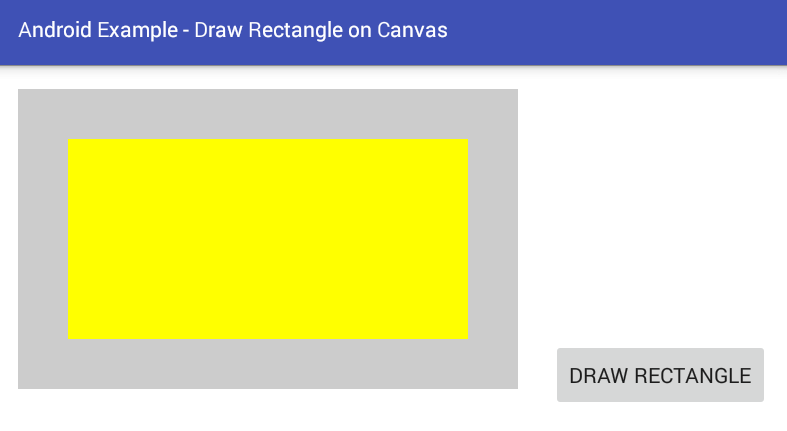

android - How to draw a Rectangle on a Canvas

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/rl"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:padding="16dp"
    tools:context=".MainActivity"
    android:background="#ffffff"
    >
    <ImageView
        android:id="@+id/iv"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        />
    <Button
        android:id="@+id/btn"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Draw Rectangle"
        android:layout_alignParentRight="true"
        android:layout_alignParentEnd="true"
        android:layout_alignParentBottom="true"
        />
</RelativeLayout>
MainActivity.java

package com.cfsuman.me.androidcode;

import android.content.Context;
import android.content.res.Resources;
import android.graphics.Color;
import android.graphics.Paint;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;
import android.widget.ImageView;
import android.widget.RelativeLayout;
import android.widget.TextView;
import android.graphics.Canvas;
import android.graphics.Bitmap;
import android.graphics.Rect;


public class MainActivity extends AppCompatActivity {
    private Context mContext;
    private Resources mResources;
    private RelativeLayout mRelativeLayout;
    private TextView mTextView;
    private Button mButton;
    private ImageView mImageView;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        // Get the application context
        mContext = getApplicationContext();

        // Get the Resources
        mResources = getResources();

        // Get the widgets reference from XML layout
        mRelativeLayout = (RelativeLayout) findViewById(R.id.rl);
        mButton = (Button) findViewById(R.id.btn);
        mImageView = (ImageView) findViewById(R.id.iv);

        // Set a click listener for Button widget
        mButton.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                // Initialize a new Bitmap object
                Bitmap bitmap = Bitmap.createBitmap(
                        500, // Width
                        300, // Height
                        Bitmap.Config.ARGB_8888 // Config
                );

                // Initialize a new Canvas instance
                Canvas canvas = new Canvas(bitmap);

                // Draw a solid color to the canvas background
                canvas.drawColor(Color.LTGRAY);

                // Initialize a new Paint instance to draw the Rectangle
                Paint paint = new Paint();
                paint.setStyle(Paint.Style.FILL);
                paint.setColor(Color.YELLOW);
                paint.setAntiAlias(true);

                // Set a pixels value to padding around the rectangle
                int padding = 50;

                /*
                    public Rect (int left, int top, int right, int bottom)
                        Create a new rectangle with the specified coordinates. Note: no range
                        checking is performed, so the caller must ensure that left <= right and
                        top <= bottom.

                    Parameters
                        left : The X coordinate of the left side of the rectangle
                        top : The Y coordinate of the top of the rectangle
                        right : The X coordinate of the right side of the rectangle
                        bottom : The Y coordinate of the bottom of the rectangle

                */

                // Initialize a new Rect object
                Rect rectangle = new Rect(
                        padding, // Left
                        padding, // Top
                        canvas.getWidth() - padding, // Right
                        canvas.getHeight() - padding // Bottom
                );

                /*
                    public void drawRect (Rect r, Paint paint)
                        Draw the specified Rect using the specified Paint. The rectangle will be
                        filled or framed based on the Style in the paint.

                    Parameters
                        r : The rectangle to be drawn.
                        paint : The paint used to draw the rectangle
                */

                // Finally, draw the rectangle on the canvas
                canvas.drawRect(rectangle,paint);

                // Display the newly created bitmap on app interface
                mImageView.setImageBitmap(bitmap);
            }
        });
    }
}
