android - How to get screen size from context

activity_main.xml

<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/rl"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:padding="10dp"
    tools:context=".MainActivity"
    android:background="#bdedcc"
    android:animateLayoutChanges="true"
    >
    <TextView
        android:id="@+id/tv"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:fontFamily="Sans-Serif-Condensed"
        android:textSize="18dp"
        android:textStyle="italic"
        android:textColor="#000000"
        android:padding="15dp"
        />
    <Button
        android:id="@+id/btn"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Get Screen Size From Context"
        android:layout_below="@id/tv"
        />
</RelativeLayout>
MainActivity.java

package com.cfsuman.me.androidcodesnippets;

import android.app.ActionBar;
import android.graphics.Color;
import android.graphics.drawable.ColorDrawable;
import android.os.Bundle;
import android.app.Activity;
import android.view.View;
import android.widget.Button;

import android.widget.RelativeLayout;
import android.widget.TextView;
import android.util.DisplayMetrics;
import android.content.Context;
import android.view.WindowManager;



public class MainActivity extends Activity {

    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        // Get the widgets reference from XML layout
        final RelativeLayout rl = (RelativeLayout) findViewById(R.id.rl);
        final Button btn = (Button) findViewById(R.id.btn);
        final TextView tv = (TextView) findViewById(R.id.tv);

        ActionBar ab = getActionBar();
        ab.setBackgroundDrawable(new ColorDrawable(Color.YELLOW));

        btn.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                /*
                    Context
                        Interface to global information about an application environment.
                        This is an abstract class whose implementation is provided by the
                        Android system. It allows access to application-specific resources
                        and classes, as well as up-calls for application-level operations
                        such as launching activities, broadcasting and receiving intents, etc.
                */

                // Get the application context
                Context context = getApplicationContext();

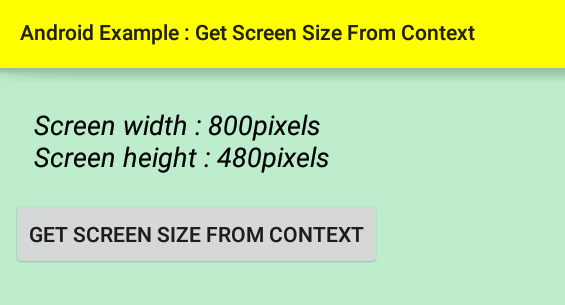

                tv.setText("Screen width : " + getScreenWidthInPixels(context) + "pixels");
                tv.setText(tv.getText() + "\nScreen height : "
                        + getScreenHeightInPixels(context) + "pixels");
           }
        });

    }

    // Custom method to get screen width in pixels using Context object
    public static int getScreenWidthInPixels(Context context){
        /*
            DisplayMetrics
                A structure describing general information about a display,
                such as its size, density, and font scaling.
        */
        DisplayMetrics dm = new DisplayMetrics();

        /*
            WindowManager
                The interface that apps use to talk to the window manager.
                Use Context.getSystemService(Context.WINDOW_SERVICE) to get one of these.
        */

        /*
            public abstract Object getSystemService (String name)
                Return the handle to a system-level service by name. The class of the returned
                object varies by the requested name. Currently available names are:

                WINDOW_SERVICE ("window")
                    The top-level window manager in which you can place custom windows.
                    The returned object is a WindowManager.
        */

        /*
            public abstract Display getDefaultDisplay ()

                Returns the Display upon which this WindowManager instance will create new windows.

                Returns
                The display that this window manager is managing.
        */

        /*
            public void getMetrics (DisplayMetrics outMetrics)
                Gets display metrics that describe the size and density of this display.
                The size is adjusted based on the current rotation of the display.

                Parameters
                outMetrics A DisplayMetrics object to receive the metrics.
        */
        WindowManager windowManager = (WindowManager) context.getSystemService(WINDOW_SERVICE);
        windowManager.getDefaultDisplay().getMetrics(dm);
        int width = dm.widthPixels;
        return width;
    }

    // Custom method to get screen height in pixels using Context object
    public static int getScreenHeightInPixels(Context context){
        DisplayMetrics dm = new DisplayMetrics();
        WindowManager windowManager = (WindowManager) context.getSystemService(WINDOW_SERVICE);
        windowManager.getDefaultDisplay().getMetrics(dm);
        int height = dm.heightPixels;
        return height;
    }
}
