android - How to get screen orientation

activity_main.xml

<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/rl"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:padding="10dp"
    tools:context=".MainActivity"
    android:background="#c9cdaf"
    >
    <TextView
        android:id="@+id/tv"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:fontFamily="Sans-Serif-Condensed"
        android:textSize="18dp"
        android:textStyle="italic"
        android:textColor="#000000"
        android:padding="15dp"
        />
    <Button
        android:id="@+id/btn"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Get Screen Orientation"
        android:layout_below="@id/tv"
        />
</RelativeLayout>
MainActivity.java

package com.cfsuman.me.androidcodesnippets;

import android.app.ActionBar;
import android.graphics.Color;
import android.graphics.drawable.ColorDrawable;
import android.os.Bundle;
import android.app.Activity;
import android.view.View;
import android.widget.Button;
import android.widget.RelativeLayout;
import android.widget.TextView;
import android.content.res.Configuration;


public class MainActivity extends Activity {

    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        // Get the widgets reference from XML layout
        final RelativeLayout rl = (RelativeLayout) findViewById(R.id.rl);
        final Button btn = (Button) findViewById(R.id.btn);
        final TextView tv = (TextView) findViewById(R.id.tv);

        ActionBar ab = getActionBar();
        ab.setBackgroundDrawable(new ColorDrawable(Color.RED));

        btn.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                // Get the activity
                Activity activity = MainActivity.this;

                tv.setText("Screen current orientation : "
                        + getScreenOrientation(activity));
            }
        });
    }

    // Custom method to get screen current orientation
    public static String getScreenOrientation(Activity activity) {
        /*
            We also can get orientation by using context instead activity
            Context.getResources().getConfiguration().orientation;
        */

        String orientation = "";
        /*
            public Resources getResources ()
                Return a Resources instance for your application's package.
        */

        /*
            Resources
                The Android resource system keeps track of all non-code assets associated
                with an application. You can use this class to access your application's
                resources. You can generally acquire the Resources instance associated
                with your application with getResources().
        */

        /*
            Configuration
                This class describes all device configuration information that can impact
                the resources the application retrieves. This includes both user-specified
                configuration options (locale and scaling) as well as device configurations
                (such as input modes, screen size and screen orientation).

                You can acquire this object from Resources, using getConfiguration().
                Thus, from an activity, you can get it by chaining the
                request with getResources().
        */

        /*
            public int orientation
                Overall orientation of the screen. May be one
                of ORIENTATION_LANDSCAPE, ORIENTATION_PORTRAIT.
        */

        /*
            public static final int ORIENTATION_LANDSCAPE
                Constant for orientation, value corresponding to the land resource qualifier.
                Constant Value: 2 (0x00000002)

            public static final int ORIENTATION_PORTRAIT
                Constant for orientation, value corresponding to the port resource qualifier.
                Constant Value: 1 (0x00000001)
        */
        int currentOrientation = activity.getResources().getConfiguration().orientation;

        if (currentOrientation == Configuration.ORIENTATION_LANDSCAPE) {

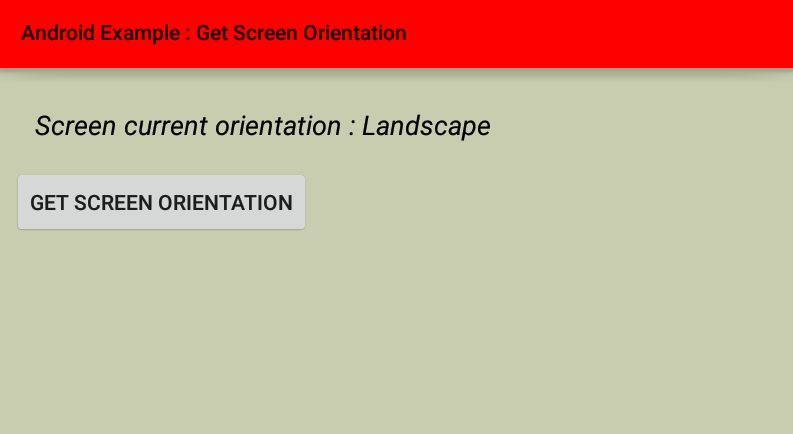

            orientation = "Landscape";
        }

        if (currentOrientation == Configuration.ORIENTATION_PORTRAIT) {

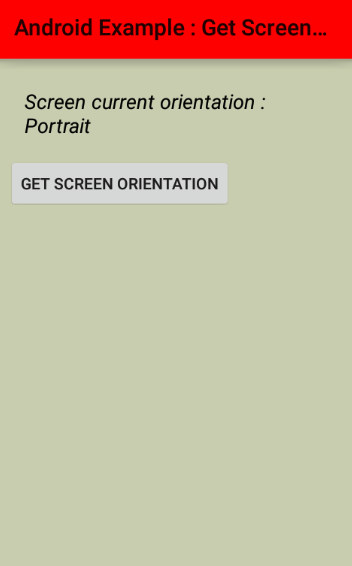

            orientation = "Portrait";
        }

        return orientation;
    }
}
